性能特點:

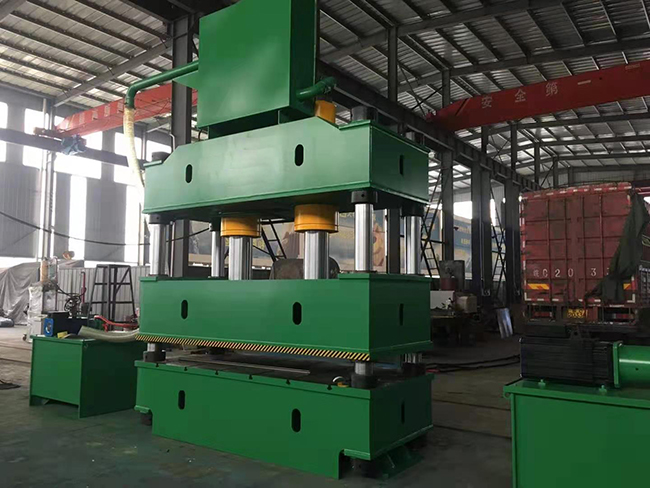

★本系(xi)列液壓機是通用性壓制設備,適(shi)用于可塑性材料(liao)的壓制工藝。如粉末制品成(cheng)型(xing)(xing)、塑料(liao)制品成(cheng)型(xing)(xing)、冷(熱)擠壓金屬成(cheng)型(xing)(xing)、薄(bo)板接伸以及沖壓、彎曲、翻(fan)邊、校正(zheng)等工藝。
★機器具有(you)獨立(li)的動力機構的電(dian)氣系統,采用(yong)按鈕集(ji)中控制(zhi),可實現(xian)調整、手動及(ji)半自動三種工(gong)作方式;
★機器的(de)工(gong)(gong)(gong)(gong)作壓(ya)力、壓(ya)制(zhi)(zhi)速(su)度和滑塊行(xing)程(cheng),均可根據(ju)工(gong)(gong)(gong)(gong)藝(yi)需要進行(xing)調整,并(bing)能完成頂出(chu)工(gong)(gong)(gong)(gong)藝(yi)、不(bu)帶(dai)頂出(chu)工(gong)(gong)(gong)(gong)藝(yi)、拉伸工(gong)(gong)(gong)(gong)藝(yi)三種工(gong)(gong)(gong)(gong)藝(yi)方式,每種工(gong)(gong)(gong)(gong)藝(yi)又為定(ding)(ding)壓(ya)、定(ding)(ding)程(cheng)兩(liang)種工(gong)(gong)(gong)(gong)藝(yi)動作供選擇,定(ding)(ding)壓(ya)成型工(gong)(gong)(gong)(gong)藝(yi)在壓(ya)制(zhi)(zhi)后(hou)具有保壓(ya)、延時、自動回程(cheng)。
★本系列液壓機除具有上述功能外(wai),頂(ding)出缸還具有頂(ding)出、延時、自動退回。
型(xing)號參數:
參數名稱 | 單位 | YYL32系列(lie) | |||||||||||||||||
40 | 63 | 100 | 100 | 160 | 160B | 200 | 315 | 400 | 500 | 500C | 630 | 800 | 1000 | 1250 | 1600 | 2000 | |||
公稱力 | KN | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2000 | 3150 | 4000 | 5000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | |
頂出力 | KN | 120 | 190 | 190 | 190 | 400 | 400 | 400 | 630 | 630 | 1000 | 1000 | 1000 | 1600 | 2000 | 2000 | 2000 | 3200 | |
液體最大壓強 | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 26 | |
滑塊最大行程 | mm | 450 | 500 | 600 | 700 | 700 | 700 | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 1300 | |
頂出活塞最大行程 | mm | 150 | 200 | 200 | 200 | 200 | 200 | 250 | 300 | 300 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 500 | |
最大開口高度 | mm | 700 | 750 | 880 | 880 | 900 | 1000 | 1100 | 1250 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 1600 | 1600 | 1800 | |
滑塊形成速度 | 空載下行 | mm/s | 20 | 20 | 22 | 120 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 80 | 110 |
工作 | mm/s | 14 | 14 | 14 | 14 | 12 | 12 | 8 | 6-8 | 5-7 | 5 | 6 | 10 | 8 | 10 | 6-10 | 6-10 | 4-9 | |
回程 | mm/s | 45 | 120 | 47 | 120 | 70 | 70 | 52 | 60 | 45 | 70 | 70 | 60 | 70 | 60 | 50 | 40 | 70 | |
工作臺有效尺寸 | 左右 | mm | 500 | 580 | 720 | 720 | 680 | 1000 | 1000 | 1260 | 1240 | 1400 | 2400 | 1500 | 1500 | 1580 | 1700 | 2000 | 3200 |
前后 | 460 | 500 | 580 | 580 | 620 | 800 | 900 | 1200 | 1200 | 1400 | 1400 | 1500 | 1400 | 1600 | 1600 | 1600 | 2200 | ||
電機功率 | KW | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 15 | 15 | 15 | 37 | 37 | 44 | 60 | 60 | 74 | 74 | 3x37 |
