性能特(te)點(dian):

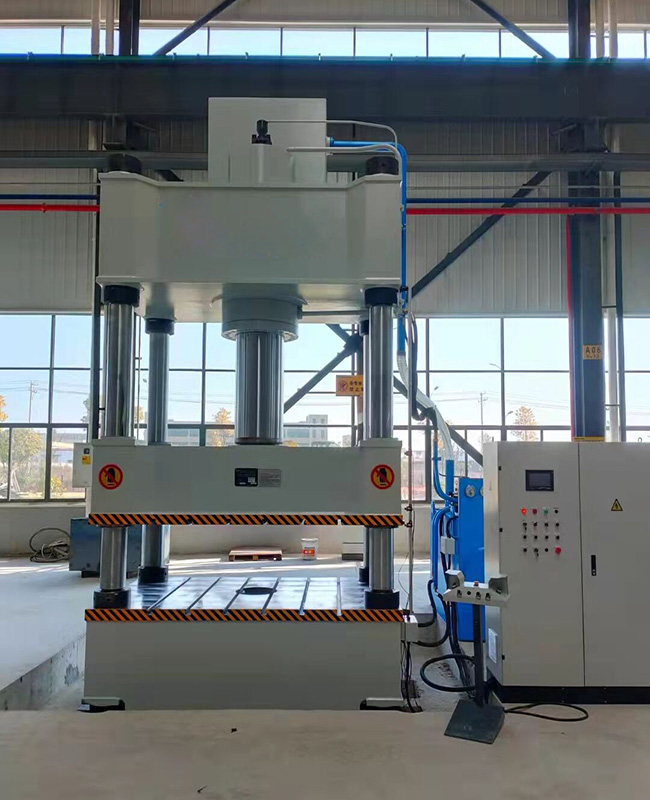

★本(ben)系(xi)列液壓(ya)(ya)(ya)(ya)機是通(tong)用性壓(ya)(ya)(ya)(ya)制(zhi)設(she)備(bei),適用于(yu)可(ke)塑性材料的壓(ya)(ya)(ya)(ya)制(zhi)工藝。如粉(fen)末(mo)制(zhi)品成(cheng)型、塑料制(zhi)品成(cheng)型、冷(熱)擠壓(ya)(ya)(ya)(ya)金屬成(cheng)型、薄(bo)板接伸以及沖壓(ya)(ya)(ya)(ya)、彎曲、翻邊、校(xiao)正(zheng)等工藝。
★機器具(ju)有獨立的動力機構的電氣(qi)系統,采用按鈕(niu)集中控制,可實現調整、手動及半自動三種工作方式;
★機器的(de)工(gong)(gong)(gong)作壓(ya)力、壓(ya)制(zhi)速度和滑塊(kuai)行程,均可根據工(gong)(gong)(gong)藝(yi)(yi)需要進(jin)行調整,并能完成頂出工(gong)(gong)(gong)藝(yi)(yi)、不(bu)帶頂出工(gong)(gong)(gong)藝(yi)(yi)、拉伸工(gong)(gong)(gong)藝(yi)(yi)三種(zhong)工(gong)(gong)(gong)藝(yi)(yi)方式,每種(zhong)工(gong)(gong)(gong)藝(yi)(yi)又(you)為(wei)定壓(ya)、定程兩種(zhong)工(gong)(gong)(gong)藝(yi)(yi)動作供選(xuan)擇,定壓(ya)成型(xing)工(gong)(gong)(gong)藝(yi)(yi)在壓(ya)制(zhi)后(hou)具(ju)有保壓(ya)、延時、自(zi)動回(hui)程。
★本(ben)系列液壓(ya)機除具有(you)上(shang)述功能(neng)外,頂(ding)出(chu)(chu)缸還(huan)具有(you)頂(ding)出(chu)(chu)、延時(shi)、自動退回。
型號參(can)數:
參數名稱 | 單位 | YYL32系(xi)列 | |||||||||||||||||
40 | 63 | 100 | 100 | 160 | 160B | 200 | 315 | 400 | 500 | 500C | 630 | 800 | 1000 | 1250 | 1600 | 2000 | |||
公稱力 | KN | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2000 | 3150 | 4000 | 5000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | |
頂出力 | KN | 120 | 190 | 190 | 190 | 400 | 400 | 400 | 630 | 630 | 1000 | 1000 | 1000 | 1600 | 2000 | 2000 | 2000 | 3200 | |
液體最大壓強 | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 26 | |
滑塊最大行程 | mm | 450 | 500 | 600 | 700 | 700 | 700 | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 1300 | |
頂出活塞最大行程 | mm | 150 | 200 | 200 | 200 | 200 | 200 | 250 | 300 | 300 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 500 | |
最大開口高度 | mm | 700 | 750 | 880 | 880 | 900 | 1000 | 1100 | 1250 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 1600 | 1600 | 1800 | |
滑塊形成速度 | 空載下行 | mm/s | 20 | 20 | 22 | 120 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 80 | 110 |
工作 | mm/s | 14 | 14 | 14 | 14 | 12 | 12 | 8 | 6-8 | 5-7 | 5 | 6 | 10 | 8 | 10 | 6-10 | 6-10 | 4-9 | |
回程 | mm/s | 45 | 120 | 47 | 120 | 70 | 70 | 52 | 60 | 45 | 70 | 70 | 60 | 70 | 60 | 50 | 40 | 70 | |
工作臺有效尺寸 | 左右 | mm | 500 | 580 | 720 | 720 | 680 | 1000 | 1000 | 1260 | 1240 | 1400 | 2400 | 1500 | 1500 | 1580 | 1700 | 2000 | 3200 |
前后 | 460 | 500 | 580 | 580 | 620 | 800 | 900 | 1200 | 1200 | 1400 | 1400 | 1500 | 1400 | 1600 | 1600 | 1600 | 2200 | ||
電機功率 | KW | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 15 | 15 | 15 | 37 | 37 | 44 | 60 | 60 | 74 | 74 | 3x37 |
