性(xing)能特點:

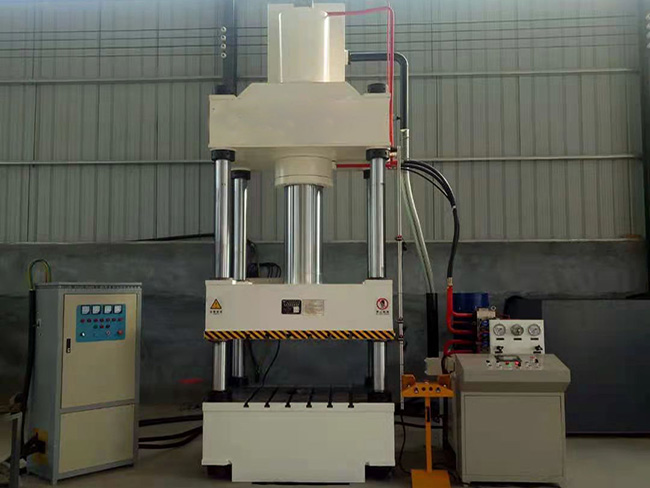

★本系列(lie)液壓(ya)(ya)(ya)機是(shi)通(tong)用性(xing)壓(ya)(ya)(ya)制(zhi)設備(bei),適(shi)用于可(ke)塑性(xing)材料(liao)的壓(ya)(ya)(ya)制(zhi)工(gong)藝。如粉末(mo)制(zhi)品(pin)成(cheng)型(xing)、塑料(liao)制(zhi)品(pin)成(cheng)型(xing)、冷(leng)(熱(re))擠壓(ya)(ya)(ya)金屬(shu)成(cheng)型(xing)、薄(bo)板接伸以及沖壓(ya)(ya)(ya)、彎曲、翻邊、校正等工(gong)藝。
★機器具有獨立的動力(li)機構(gou)的電氣系統,采用(yong)按(an)鈕集中(zhong)控(kong)制,可(ke)實現調整、手動及半自動三種工(gong)作方(fang)式;
★機器的工(gong)(gong)作壓(ya)力、壓(ya)制速度和滑(hua)塊(kuai)行程,均可(ke)根(gen)據工(gong)(gong)藝(yi)需要進行調整,并能完成(cheng)頂(ding)出工(gong)(gong)藝(yi)、不帶頂(ding)出工(gong)(gong)藝(yi)、拉伸工(gong)(gong)藝(yi)三(san)種(zhong)(zhong)工(gong)(gong)藝(yi)方式(shi),每種(zhong)(zhong)工(gong)(gong)藝(yi)又為定壓(ya)、定程兩種(zhong)(zhong)工(gong)(gong)藝(yi)動(dong)作供選(xuan)擇,定壓(ya)成(cheng)型工(gong)(gong)藝(yi)在壓(ya)制后(hou)具有保壓(ya)、延時、自動(dong)回(hui)程。
★本系列液(ye)壓(ya)機除(chu)具(ju)有(you)上述功能外,頂出缸還具(ju)有(you)頂出、延時(shi)、自動退回(hui)。
型號(hao)參數:
參數名稱 | 單位 | YYL32系列 | |||||||||||||||||
40 | 63 | 100 | 100 | 160 | 160B | 200 | 315 | 400 | 500 | 500C | 630 | 800 | 1000 | 1250 | 1600 | 2000 | |||
公稱力 | KN | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2000 | 3150 | 4000 | 5000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | |
頂出力 | KN | 120 | 190 | 190 | 190 | 400 | 400 | 400 | 630 | 630 | 1000 | 1000 | 1000 | 1600 | 2000 | 2000 | 2000 | 3200 | |
液體最大壓強 | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 26 | |
滑塊最大行程 | mm | 450 | 500 | 600 | 700 | 700 | 700 | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 1300 | |
頂出活塞最大行程 | mm | 150 | 200 | 200 | 200 | 200 | 200 | 250 | 300 | 300 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 500 | |
最大開口高度 | mm | 700 | 750 | 880 | 880 | 900 | 1000 | 1100 | 1250 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 1600 | 1600 | 1800 | |
滑塊形成速度 | 空載下行 | mm/s | 20 | 20 | 22 | 120 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 80 | 110 |
工作 | mm/s | 14 | 14 | 14 | 14 | 12 | 12 | 8 | 6-8 | 5-7 | 5 | 6 | 10 | 8 | 10 | 6-10 | 6-10 | 4-9 | |
回程 | mm/s | 45 | 120 | 47 | 120 | 70 | 70 | 52 | 60 | 45 | 70 | 70 | 60 | 70 | 60 | 50 | 40 | 70 | |
工作臺有效尺寸 | 左右 | mm | 500 | 580 | 720 | 720 | 680 | 1000 | 1000 | 1260 | 1240 | 1400 | 2400 | 1500 | 1500 | 1580 | 1700 | 2000 | 3200 |
前后 | 460 | 500 | 580 | 580 | 620 | 800 | 900 | 1200 | 1200 | 1400 | 1400 | 1500 | 1400 | 1600 | 1600 | 1600 | 2200 | ||
電機功率 | KW | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 15 | 15 | 15 | 37 | 37 | 44 | 60 | 60 | 74 | 74 | 3x37 |
