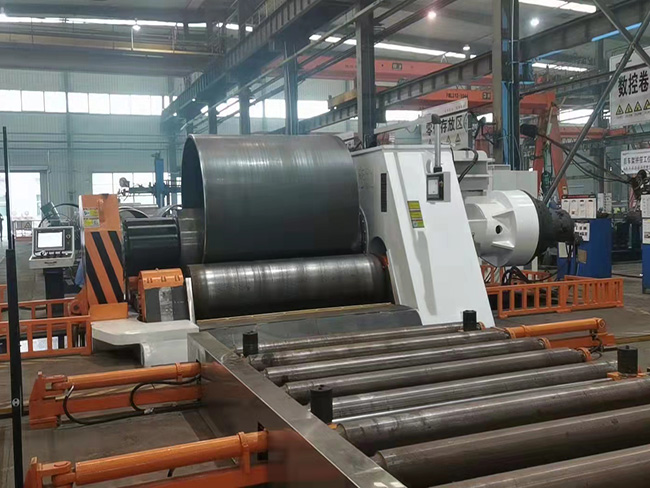

四輥卷板機性能特點:
該(gai)機結構(gou)型(xing)式(shi)(shi)四輥(gun)式(shi)(shi),上輥(gun)為主(zhu)傳(chuan)(chuan)動(dong)(dong),通(tong)過(guo)減(jian)速(su)機的輸(shu)出齒輪與上輥(gun)齒輪嚙合,為卷(juan)制板材(cai)提供扭(niu)矩;下輥(gun)作(zuo)(zuo)垂直(zhi)升降運動(dong)(dong),通(tong)過(guo)液(ye)壓(ya)缸內的液(ye)壓(ya)油(you)作(zuo)(zuo)用于活塞而獲得,以(yi)(yi)便夾緊板材(cai),為液(ye)壓(ya)傳(chuan)(chuan)動(dong)(dong);在下輥(gun)的兩(liang)側設有側輥(gun)并(bing)沿著機架導軌作(zuo)(zuo)傾(qing)運動(dong)(dong),通(tong)過(guo)絲(si)桿絲(si)母蝸輪蝸桿傳(chuan)(chuan)動(dong)(dong);該(gai)機優點是板材(cai)端部預彎及卷(juan)圓可以(yi)(yi)在同一臺(tai)設備上進行(xing)。
技術參數:
規格型號 | 卷(juan)板最大厚(hou)度mm | 卷板最大寬度mm | 卷(juan)板屈(qu)服極(ji)限Mpa | 卷板速度m/min | 滿載(zai)最小直徑mm | 上輥直徑mm | 下(xia)輥直徑mm | 側輥直徑mm | 側輥最大行(xing)程mm | 側輥調整速度m/min | 主(zhu)電機功率kw |
W12-25*2000 | 25 | 2000 | 245 | 4 | 800 | 350 | 320 | 240 | 240 | 80 | 22 |
W12-20*2500 | 20 | 2500 | 245 | 4 | 640 | 350 | 320 | 240 | 240 | 80 | 30 |
W12-30*2000 | 30 | 2000 | 245 | 4 | 1000 | 400 | 360 | 240 | 240 | 80 | 37 |
W12-25*2500 | 25 | 2500 | 245 | 4 | 800 | 400 | 360 | 240 | 240 | 80 | 37 |
W12-35*2000 | 35 | 2000 | 245 | 4 | 1200 | 420 | 380 | 210 | 210 | 80 | 37 |
W12-30*2500 | 30 | 2500 | 245 | 4 | 1000 | 400 | 360 | 230 | 230 | 80 | 37 |
W12-40*2000 | 40 | 2000 | 245 | 4 | 1400 | 480 | 400 | 420 | 420 | 80 | 45 |
W12-45*2000 | 45 | 2000 | 245 | 4 | 1600 | 500 | 450 | 280 | 280 | 80 | 45 |
W12-35*2500 | 35 | 2500 | 245 | 4 | 1200 | 480 | 400 | 420 | 420 | 80 | 45 |
W12-40*2500 | 40 | 2500 | 245 | 4 | 1400 | 500 | 450 | 380 | 380 | 80 | 45 |
W12-45*2500 | 45 | 2500 | 245 | 4 | 1600 | 530 | 480 | 450 | 450 | 80 | 63 |
W12-35*3000 | 35 | 3000 | 245 | 4 | 1200 | 500 | 450 | 380 | 380 | 80 | 45 |
W12-45*3000 | 45 | 3000 | 245 | 4 | 1600 | 560 | 500 | 450 | 450 | 80 | 63 |
W12-55*2500 | 55 | 2500 | 245 | 4 | 2000 | 600 | 550 | 500 | 500 | 78 | 75 |
W12-55*3000 | 55 | 3000 | 245 | 4 | 2000 | 620 | 560 | 500 | 500 | 78 | 75 |
W12-65*3000 | 65 | 3000 | 245 | 4 | 2400 | 670 | 600 | 550 | 550 | 78 | 110 |
