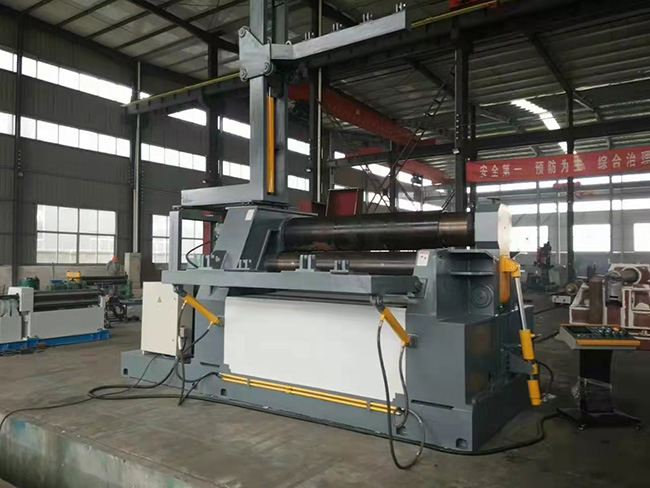

四輥卷板機性能特點:
該機(ji)結構(gou)型式(shi)(shi)四輥(gun)式(shi)(shi),上(shang)輥(gun)為主傳(chuan)動(dong)(dong),通過(guo)(guo)減速(su)機(ji)的(de)輸(shu)出齒輪(lun)與上(shang)輥(gun)齒輪(lun)嚙(nie)合,為卷制板材(cai)(cai)提供扭矩(ju);下輥(gun)作(zuo)垂直(zhi)升降(jiang)運(yun)動(dong)(dong),通過(guo)(guo)液壓缸內的(de)液壓油作(zuo)用于活塞而獲得,以(yi)便夾緊板材(cai)(cai),為液壓傳(chuan)動(dong)(dong);在下輥(gun)的(de)兩側設(she)有側輥(gun)并沿著機(ji)架導(dao)軌作(zuo)傾運(yun)動(dong)(dong),通過(guo)(guo)絲桿絲母蝸輪(lun)蝸桿傳(chuan)動(dong)(dong);該機(ji)優點是板材(cai)(cai)端部預(yu)彎及卷圓可以(yi)在同一臺(tai)設(she)備上(shang)進行。
技術參數:
規格型(xing)號(hao)
|
卷板最(zui)大厚度mm
|
卷板(ban)最大寬度(du)mm
|
卷板屈服極限Mpa
|
卷(juan)板速度m/min
|
滿載最(zui)小直徑mm
|
上輥(gun)直徑mm
|
下輥直徑mm
|
側輥直徑(jing)mm
|
側輥最(zui)大行程(cheng)mm
|
側輥調整(zheng)速度(du)m/min
|
主(zhu)電機功率kw
|
W12-25*2000
|
25
|
2000
|
245
|
4
|
800
|
350
|
320
|
240
|
240
|
80
|
22
|
W12-20*2500
|
20
|
2500
|
245
|
4
|
640
|
350
|
320
|
240
|
240
|
80
|
30
|
W12-30*2000
|
30
|
2000
|
245
|
4
|
1000
|
400
|
360
|
240
|
240
|
80
|
37
|
W12-25*2500
|
25
|
2500
|
245
|
4
|
800
|
400
|
360
|
240
|
240
|
80
|
37
|
W12-35*2000
|
35
|
2000
|
245
|
4
|
1200
|
420
|
380
|
210
|
210
|
80
|
37
|
W12-30*2500
|
30
|
2500
|
245
|
4
|
1000
|
400
|
360
|
230
|
230
|
80
|
37
|
W12-40*2000
|
40
|
2000
|
245
|
4
|
1400
|
480
|
400
|
420
|
420
|
80
|
45
|
W12-45*2000
|
45
|
2000
|
245
|
4
|
1600
|
500
|
450
|
280
|
280
|
80
|
45
|
W12-35*2500
|
35
|
2500
|
245
|
4
|
1200
|
480
|
400
|
420
|
420
|
80
|
45
|
W12-40*2500
|
40
|
2500
|
245
|
4
|
1400
|
500
|
450
|
380
|
380
|
80
|
45
|
W12-45*2500
|
45
|
2500
|
245
|
4
|
1600
|
530
|
480
|
450
|
450
|
80
|
63
|
W12-35*3000
|
35
|
3000
|
245
|
4
|
1200
|
500
|
450
|
380
|
380
|
80
|
45
|
W12-45*3000
|
45
|
3000
|
245
|
4
|
1600
|
560
|
500
|
450
|
450
|
80
|
63
|
W12-55*2500
|
55
|
2500
|
245
|
4
|
2000
|
600
|
550
|
500
|
500
|
78
|
75
|
W12-55*3000
|
55
|
3000
|
245
|
4
|
2000
|
620
|
560
|
500
|
500
|
78
|
75
|
W12-65*3000
|
65
|
3000
|
245
|
4
|
2400
|
670
|
600
|
550
|
550
|
78
|
110
|
