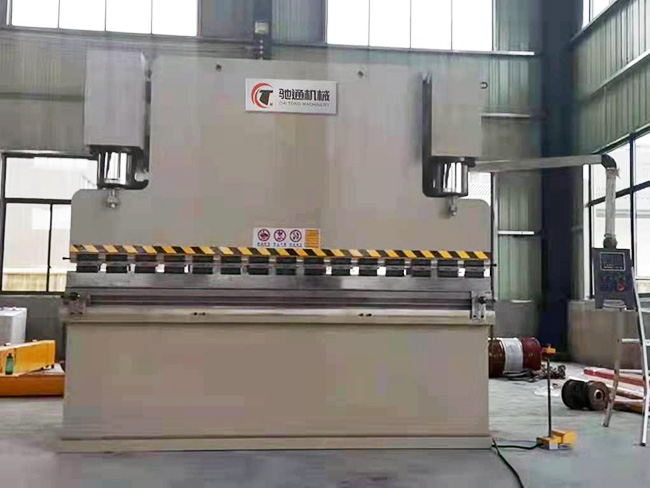

性能特點:
全鋼焊接結構,震動消除(chu)應力,機器強(qiang)度高,剛性好
液壓(ya)(ya)上(shang)傳(chuan)動,無(wu)極(ji)調(diao)壓(ya)(ya),采用高質量進口密封圈,平穩(wen)可靠
機械擋塊,扭軸同步(bu),精度高
后(hou)擋料定位和滑塊行程調節,采用電(dian)動(dong)快調和手(shou)動(dong)微調,數字顯示
上(shang)(shang)模配有(you)繞度補償機構(gou)。(250噸以上(shang)(shang)為工(gong)作臺下補償機構(gou))
機床配有安全防護(hu)欄及開門斷電裝(zhuang)置,提高了操作的安全性(xing)。
技術參數:
規格型號 Specification | 公稱壓力 Nominal Pressure | 工作臺長度 Length of working table | 喉口深度 Throat dephts | 滑塊行程 Ram Stroke | 行程次數 Number of Stroke | 主電機功率 Motor power |
KN | mm | mm | mm | m/min-1 | KW | |
WC67Y/K-40/2200 | 400 | 2200 | 200 | 100 | 11 | 4 |
WC67Y/K-40/2500 | 400 | 2500 | 200 | 100 | 11 | 4 |
WC67Y/K-50/2500 | 500 | 2500 | 200 | 100 | 11 | 5.5 |
WC67Y/K-63/2500 | 630 | 2500 | 250 | 100 | 10 | 5.5 |
WC67Y/K-63/3200 | 630 | 3200 | 250 | 100 | 10 | 5.5 |
WC67Y/K-80/2500 | 800 | 2500 | 320 | 150 | 8 | 7.5 |
WC67Y/K-80/3200 | 800 | 3200 | 320 | 150 | 8 | 7.5 |
WC67Y/K-100/2500 | 1000 | 2500 | 320 | 150 | 8 | 7.5 |
WC67Y/K-100/3200 | 1000 | 3200 | 320 | 150 | 8 | 7.5 |
WC67Y/K-100/4000 | 1000 | 4000 | 400 | 150 | 8 | 7.5 |
WC67Y/K-125/2500 | 1250 | 2500 | 320 | 150 | 8 | 7.5 |
WC67Y/K-125/3200 | 1250 | 3200 | 320 | 150 | 8 | 7.5 |
WC67Y/K-125/4000 | 1250 | 4000 | 400 | 150 | 8 | 7.5 |
WC67Y/K-160/3200 | 1600 | 3200 | 400 | 180 | 8 | 11 |
WC67Y/K-160/4000 | 1600 | 4000 | 400 | 180 | 8 | 11 |
WC67Y/K-160/5000 | 1600 | 5000 | 400 | 180 | 7 | 11 |
WC67Y/K-160/6000 | 1600 | 6000 | 400 | 200 | 7 | 15 |
WC67Y/K-200/3200 | 2000 | 3200 | 400 | 200 | 7 | 15 |
WC67Y/K-200/4000 | 2000 | 4000 | 400 | 200 | 7 | 15 |
WC67Y/K-200/6000 | 2000 | 6000 | 400 | 200 | 7 | 15 |
WC67Y/K-250/3200 | 2500 | 3200 | 400 | 200 | 7 | 18.5 |
WC67Y/K-250/4000 | 2500 | 4000 | 400 | 200 | 7 | 18.5 |
WC67Y/K-250/6000 | 2500 | 6000 | 400 | 250 | 7 | 18.5 |
WC67Y/K-300/3200 | 3000 | 3200 | 400 | 250 | 7 | 22 |
WC67Y/K-300/4000 | 3000 | 4000 | 400 | 250 | 7 | 22 |
WC67Y/K-300/6000 | 3000 | 6000 | 400 | 250 | 7 | 30 |
WC67Y/K-300/7000 | 3000 | 7000 | 400 | 250 | 7 | 30 |
WC67Y/K-400/6000 | 4000 | 6000 | 400 | 250 | 7 | 30 |
WC67Y/K-500/6000 | 5000 | 6000 | 400 | 300 | 7 | 37 |
WC67Y/K-600/6000 | 6000 | 6000 | 420 | 300 | 7 | 37 |
